Copyright  2017 by i-Logic Software support@i-logic.com DNC Server DNC Compare

The DNC Compare program is for checking and comparing changes

made to the NC program since being loaded into the machine. It

compares the right file to the left file and shows the differences in

the right file.

Automatically Loading Files : If DNC Server is running then when you start the DNC Compare program it will automatically load the editor text (if any) into the right side, and it will load the selected file in the DNC Server file list (if any is selected) into the left side and display the differences. Requires DNC Server version 4.1.0.7+. Manually Loading Files DNC Server Editor Button : This button will load the text from the DNC Server editor window. Load Selected File Button -  This button will load the the file that is selected in the DNC Server file list. Load Other File Button : This button will bring up Open File Dialog so you can load any text file. Scan Difference Button : When you load from the DNC Server editor the difference scanning will start automatically. Otherwise, this button can be pressed to start the scanning.

Comparing the Files

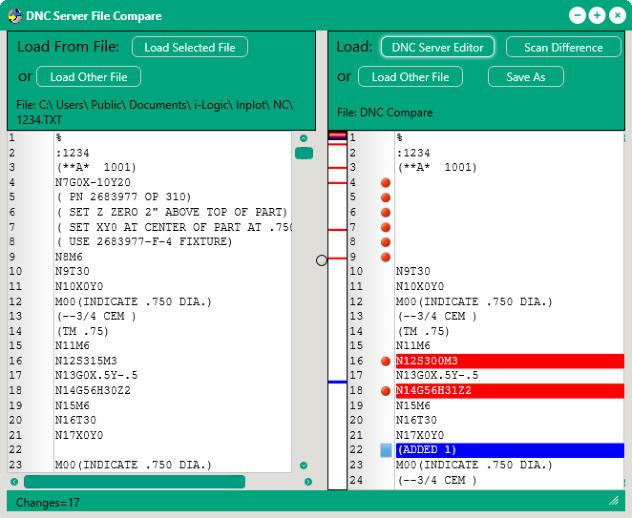

Overview Bar:  This gives a visual display of the positions of all the changes found in the file.  This helps to scroll to the positions in the file. There is a moving rectangle window on the bar that shows where you are in the file. Red Dot on Blank Line  - This means there is a line missing. There is a line in the left side file that is not in the right side file. Red Line  - This means this line has been changed from the right side file. Blue Line   - This means this line has been added. This line is not in  the file on the left side. Help File   - The System Menu in the top left corner contains link to the Help file. Start from the DNC Server Menu   - DNC Compare can be put in the Utilities menu. The setup program for DNC Compare will do this automatically. Requires "/M" as a parameter on the end. DNCUtilities.ini: Utility2=Compare,C:\Program Files (x86)\i-Logic\DNCCompare\DNCCompare.exe /M Ver. 1.0.0.3 (1/16/2017)
Download Download
