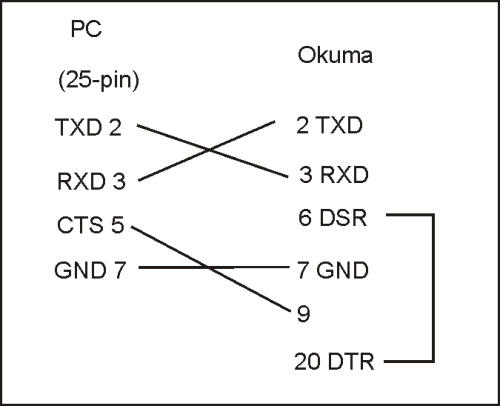

Cable Diagram for Old Model Okuma 5000 with

Hardware Handshaking

Okuma 5000
Serial

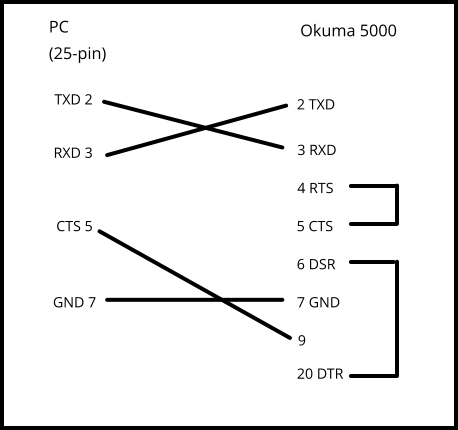

PC (25-pin) Okuma 5000 TXD 2 RXD 3 2 TXD 3 RXD 6 DSR GND 7 7 GND 9 20 DTR 4 RTS 5 CTS CTS 5
Or

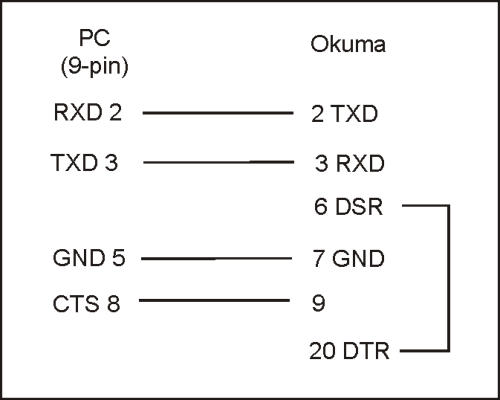

Cable Diagram for Old Model Okuma

5000 with Hardware Handshaking

Okuma 5000
Serial

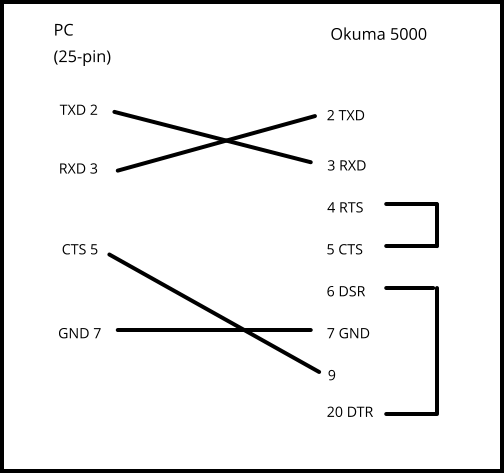

Copyright © 2017 by i-Logic Software support@i-logic.com PC (25-pin) Okuma 5000 TXD 2 RXD 3 2 TXD 3 RXD 6 DSR GND 7 7 GND 9 20 DTR 4 RTS 5 CTS CTS 5
Or
