Geometric Tolerance Wizard for Windows and OSX

Our IMS Font software is a True Type Font that can be used to create geometric tolerancing symbols for use in any word processor, database or software that supports True Type Fonts. Included is the Geometric Tolerance Wizard for making geometric tolerancing and characteristic symbols and inserting them into documents.
IMS Font Wizard    4.0 IMS Wizard Windows Trial Install IMS Wizard Windows Trial Install IMS Wizard Mac OSX Trial Install IMS Wizard Mac OSX Trial Install

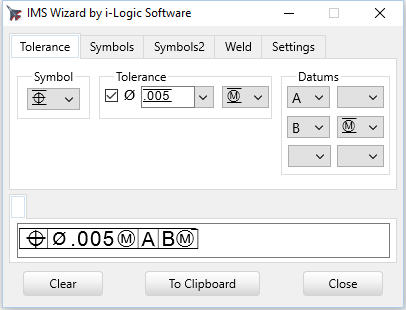

On the Tolerance Page we have a symbol builder that works by choosing the items in the dropdown boxes. The full symbol is displayed at the bottom as it is built. In the Tolerance value you can choose from the ones on the dropdown list or type in your own. When you have finished building the symbol you click the "To Clipboard" button which puts it in the windows clipboard. Then go over to your other software, for instance a word processor, put the cursor where you want to insert, and paste it in.
Fonts in your Document: If the font for the document is not set to the IMS font, the symbols will display as garbage characters. In order to display them you can either highlight the symbol and set just that to the IMS font, or what would be easier, set the whole document to the IMS font so that everything you insert will display correctly. The IMS font includes all normal upper and lower case characters so it should not be a problem making the whole document in it.

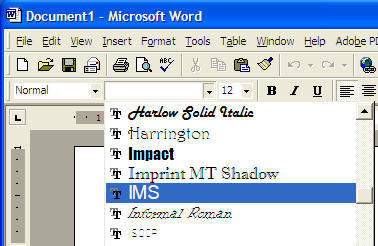

Set your document font to IMS like this:
Symbol Pages: Here is displayed all the symbols contained in the IMS font. each one is a button that you press to insert it into the display on the bottom.
Symbols as Images: With the symbols as image feature you can output images instead of text to the clipboard. This way you can insert the tolerances into documents that don't support Unicode characters or the end user won't have the IMS font installed on his computer. And with the Images you can also create Composite Tolerances.
And you can include regular text characters by typing them in from the keyboard. Symbols displayed in a word processor document:
The downloaded installation setup will install the program and font on your computer. To Install the ims.ttf font on another machine for viewing you can use the font installer here. Embeddable Font: The purchased version includes the embeddable font that can be embedded into PDF and Word documents that support font embedding. Some software like Excel spreadsheets don’t support font embedding. So if you send those documents to other people to read, they must also have at least the free IMS font installed on their computer and have the document font set to IMS.
The trial version of Geometric Tolerance Wizard is fully functional for 30 runs. Download a trial version of this software here:
For Windows XP - Windows 10. These files are Digitally Signed by i-Logic Software IMSWizardSetup4.exe (ver 4.0.0.2)(6meg) (2/8/2021)
2checkout is the e-commerce company that i-Logic Software uses to sell our products online. Your private data is 100% secure within 2checkout’s PCI and Better Business Bureau certified, DSS compliant environment. '2CO.com*i-logic.com' will appear on your credit card statement. It allows PayPal and other forms of payment also. Also, 2checkout is in the Netherlands, so if there is a problem with foreign transactions a call to your credit card company will clear it up. For purchase, there are two choices: Single License and Site License.
A single license allows you to install the Geometric Tolerance Wizard software on one computer. This allows you to insert the tolerance symbols into your documents. The font can be installed on other computers so the documents you created can be read by others. You will receive a registration code by email to enter into the trial version download. Single License
Buy Single License IMS Font Wizard $60.00
A Site License allows you to install both the Geometric Tolerance Wizard software and the font on any number of computers at one company site. So everyone would be able to create the documents at their own computer. You will receive a registration code by email to enter into the trial version download. Site License
Buy Site License IMS Font Wizard $120.00
Click on Button to Download Installer
To install Font Only you can use these links:
MacOS: IMSWizard.zip (ver 4.0.5)(6meg) (10/15/2023)
