Configure: Macros

When plotting the NC file and the Macro option is checked in the Configuration Plotting dialog box the file will be checked for macro calls to a subprogram.

When Inplot comes across this address and value it branches to the subprogram and returns when it finds the code M99.

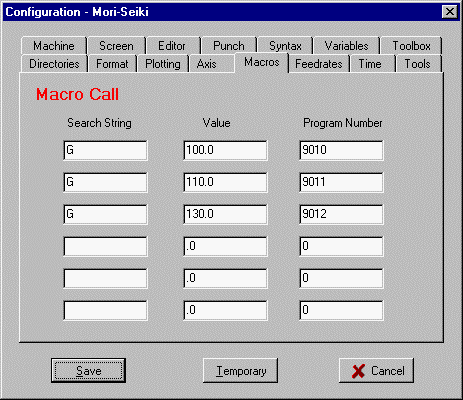

Dialog Box defines where Inplot will jump to when it finds a user defined code.

Search String is normally the address , but could be any string of characters.

Value is the value that is after the search string in the NC file.

Program Number is the program number of the separate program. This program can be in the editor at the same time, or in a separate NC file by this name. Ex: 9010.NC

The macro calling variables are stored in Fanuc format and can be used in the called subprograms.
