Using RJ-45 Modular Adaptors and Cables for Serial Communication

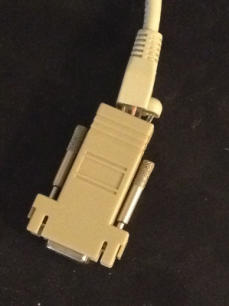

An easier way to make your serial cables for your machines. Use standard network cables with RJ-45 to serial adapters on the end. These adapters are called "DB9 to RJ-45 Modular Adapter" or "DB25 to RJ-45 Modular Adapter"
RJ-45 Modular Adaptors
Serial

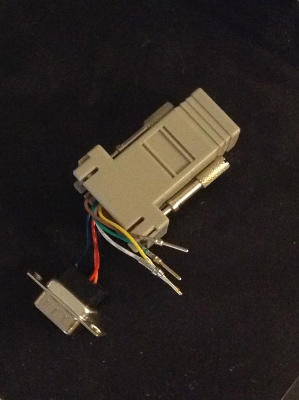

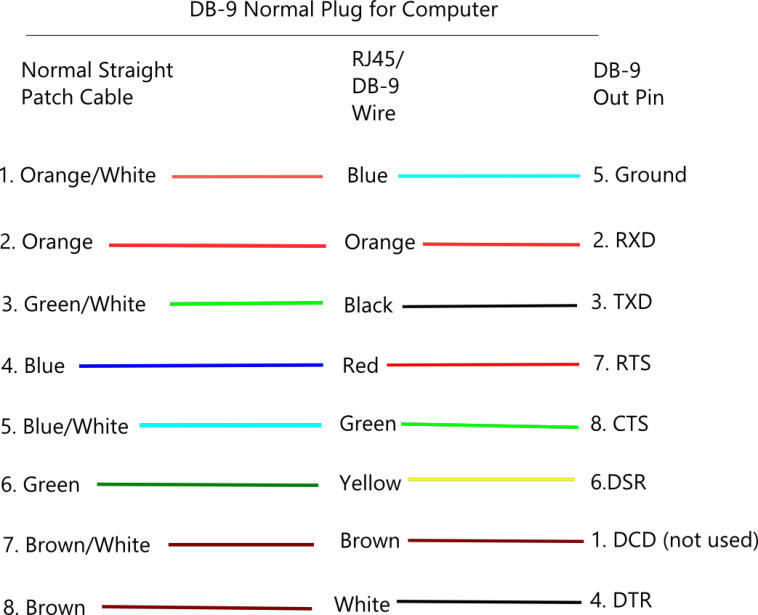

You have to wire them yourself but it is easy to do. Connect the wires like this:
Optionally, on machine plug, cut and connect pins 4 and 5, cut and connect pins 6, 8, 20
