Inplot - Editing Tools

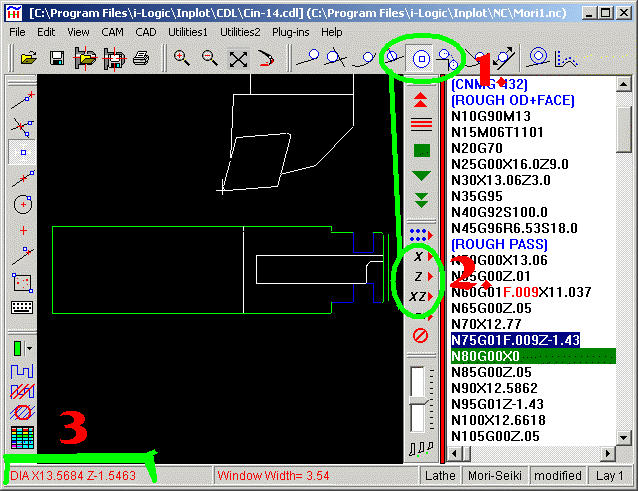

If you press the Mouse Tool button (at #1 on the picture), whenever you move the mouse in the plot window, the actual machine coordinates of the mouse position will be displayed on the status bar on the bottom.(at #3) If a tool picture is loaded, the tool will move around with the mouse at the same time.
Inplot
EDITING

The other buttons on the CAM Toolbar are similar and give other methods of obtaining

program positions.

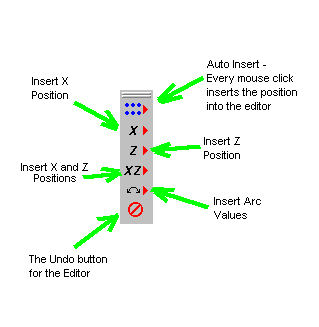

Insert Buttons The buttons at position #2 on the picture are the Insert Buttons. Pressing these buttons will insert the coordinates obtained from the CAM Tool buttons into the editor line that the cursor is on. If there is already an address value it will replace it, otherwise it will add it. With these you can modify or create programs by obtaining the program coordinates from the CAD file. Back to Index
