Inplot - Plotting the Program

Inplot loads a CAD file of the outline of the part, but if you need to make quick changes to the CAD geometry to get a new or different toolpath, you can do it inside Inplot. The right mouse popup menu will give you all the choices for making lines, arcs, along with editing functions for trim, fillet.
Inplot
PLOTTING

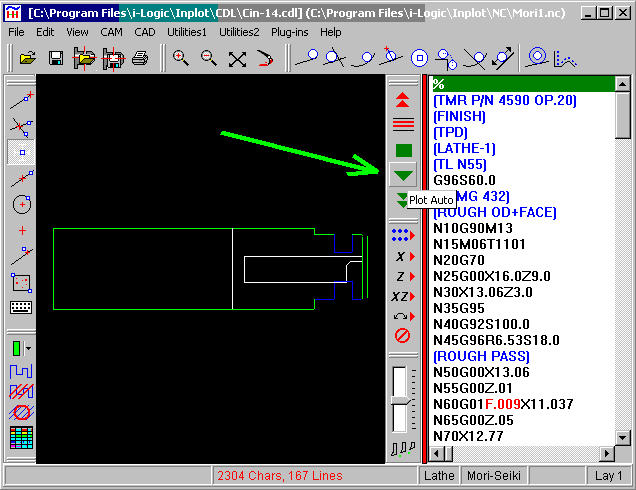

Put the editor cursor at the top of the program and press the Plot Auto button

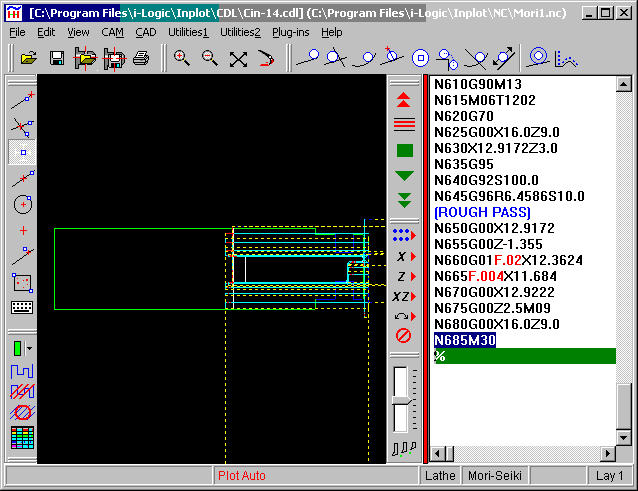

The feed moves are shown in light blue and the rapid moves are shown in dotted yellow.

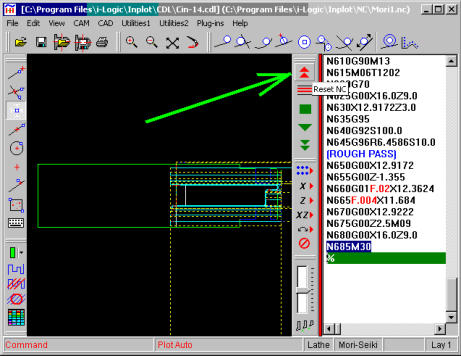

You can press the Reset button to send the cursor back to the beginning of the program and

reset the memory, just like pressing the reset button on the machine.

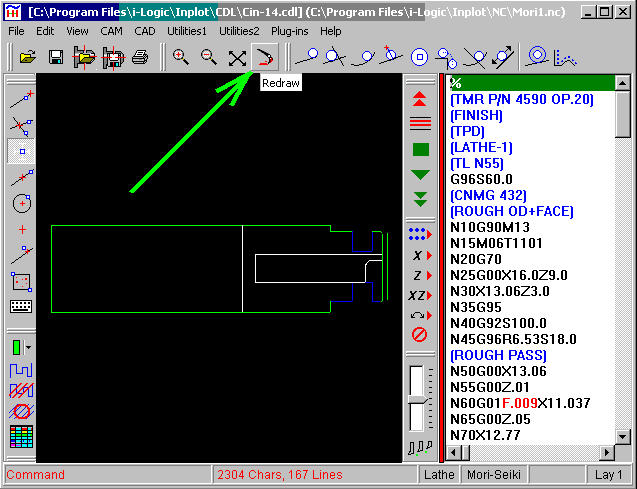

If you press the Redraw button the CAD file will be redrawn and clear any toolpaths from

the window.

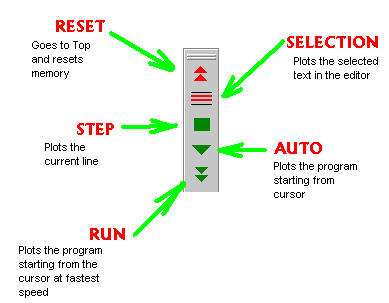

Start from the top of the program again and try plotting with the Step, Run and Selection

buttons.
